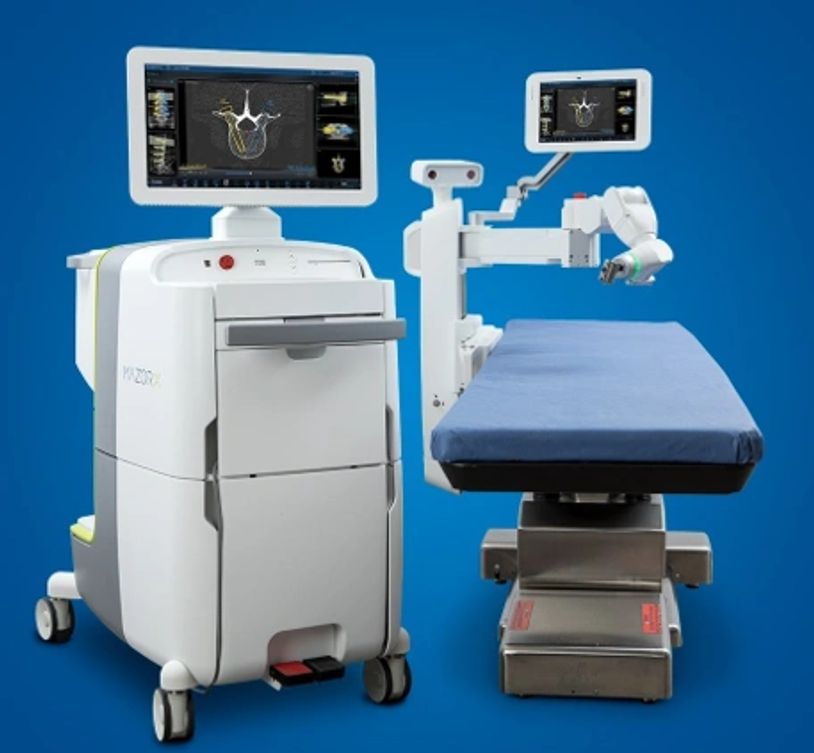

The Mazor Robotic Guidance System
The strength of Mazor™
Predictability. Precision. Visibility.
Mazor™ planning is a robust preoperative planning software that allows the surgeon to visualize and optimize spinal elements in relation to one another with automatic anatomy recognition. It utilizes an enhanced interface that delivers a fast and seamless access to plan and simulate a variety of planning elements — planning is now more efficient and intuitive than ever.
- Patient alignment
- Patient specific rods (UNiD™ rod integration)
- Pedicle screws
- Interbody cages
- Osteotomies
- Facet decortication
- Skin incisions
- Bone mount options
The Basic Mayo Setup/ Tray 1
Instrumentation List to Follow
Mayo Set-up/ Tray 2
Instrumentation List to Follow
Additional Set-up
Additional Set-up
Instrument
List of Trays for Mazor Cases (In addition to Scheduled Spine Instrumentation)
- Mazor Instruments
- Mazor Bone Mount
- Midas MR8 (Stealth Vs Non-Navigated)
- Powerease
- 5.5/6.0 Arm Guide
- Mazor Graft Delivery Gun (Case Dependent)
- Stryker System 8/TPX; Pin Driver & Batteries
Disposables from the Medtronic Tower: located at Neuro Storage Room
- MazorX Spine Disposable Kit (Preop CT Workflow)
- Mazor Drape Only (For O-arm Workflow)
- 7 packs of Spheres
- 22 Blade
- MR8-31TB3030 (3x30mm 31" Twist Drill)
- MR8-31AC75W (7.5x10mm Acorn) Case Dependent, *to prepare bone surfaces and create precise trajectories for instrumentation, a preparatory step for fusion or pedicle screw placement.
- MR8 Hand Drill Bit (14MH30), if using (from rep)
Jackson Table Setup
Jackson Table Spinal Top will need 3 T-Bar clamps:
Please check illustration.
- 2 Clamps on the side of the Mazor System
- 1 Clamp on the opposite side
Equipment Needed for Mazor Cases
- Medtronic Midas IPC Console; 2 power consoles, 1 Foot Pedal
- C-Arm; Large Square if Preop CT was ordered
- O-Arm; if planning screws intraoperatively (Check case notes)
