Instrumentation Mayo Stand Layout (ACDF) RR and PK

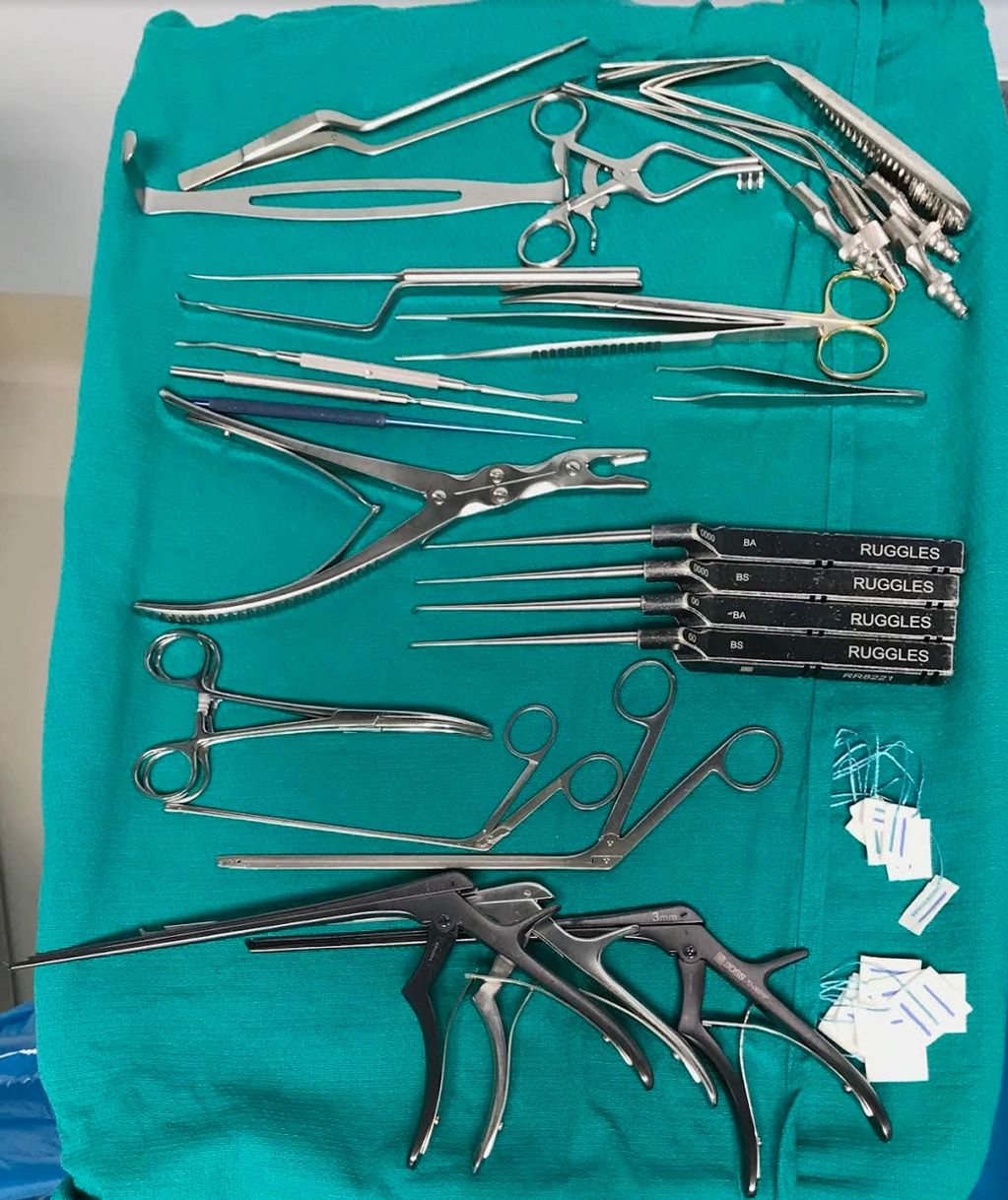

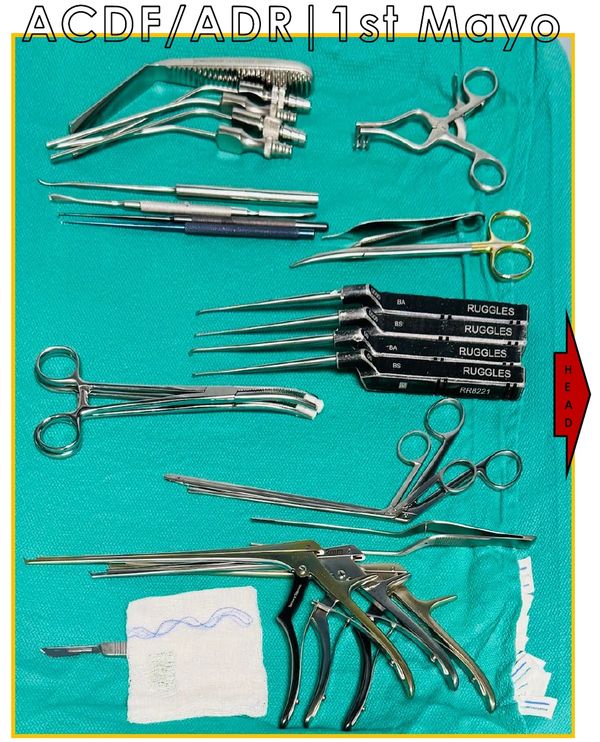

ACDF | ADR First Mayo
- Skinny Cloward, NO Lip
- 10 and 8 Fr Suctions x2
- Penfield #4
- Freer with Bone Wax
- Nerve Hook
- Micro Nerve Hook
(Other Side)
- Weitlaner Retractor
- Adson Forceps with Teeth
- Metz Scissors
- 00 BA | BS
- 0000 BA | BS
- 2 Clamps with Peanuts
- Decker
- Pituitary Rongeur
- 1 Bayonet Forceps
- #1, 2, 3 Kerrisons
- 10 Blade
- Raytec
- 1/2 x 1 and 1 x1 cottonoids under the towel

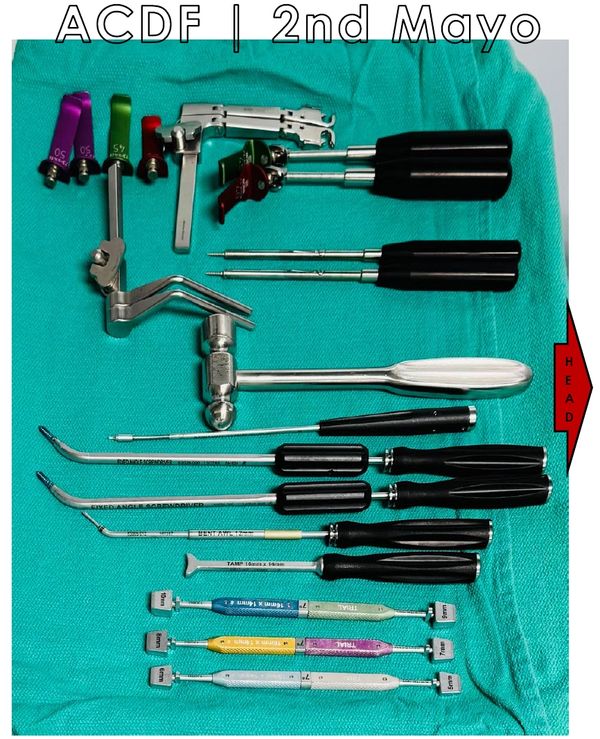

ACDF Second Mayo
* Shadowline Blade Handles x2
* Toothless Blades x2
a. Green, Purple, and Red (women)
b. Green, Purple, and Black(men)
* 2 Pin Holders; with 2 Distraction Pins
(12mm for Female, 14mm for Male)
* Shadowline (Distractor)
Pin Retractor LEFT
* Shadowline Transverse Frame
* Small Mallet
* Final Tightener/Locker
* 2 Screws (Light Blue)
* 2 Fixed Angled Screw Driver
* 12mm Bent Awl
* Tamp 16mm x 14mm
* 3 Trials Medium (16mm x 14mm with:
a. 9/10
b. 7/8
c. 5/6

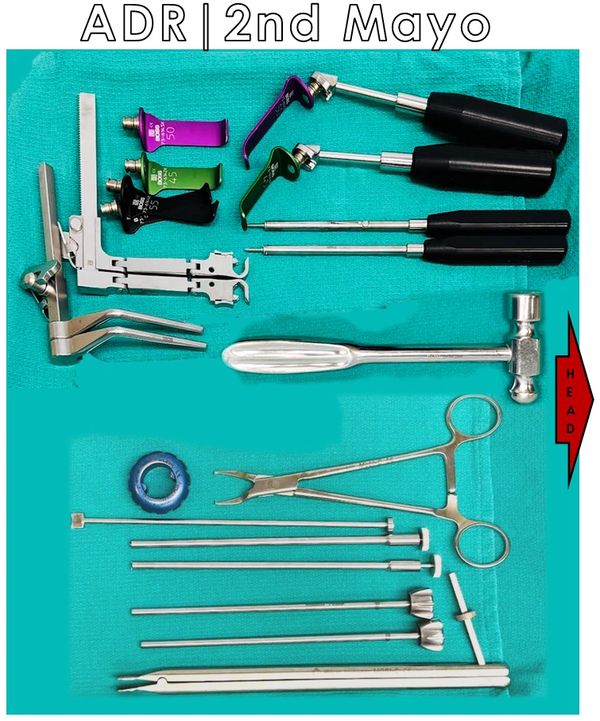

ADR Second Mayo
* 2 Shadowline Blade Handles
* Green, Purple, Black Blades, 2 each (no teeth)
* 2 Distraction Pin Holders
* 2 Distraction Pins; 14mm for male/12mm for female
* Small Mallet
* Blue Donut
* Donut Holder
* Tamp
* 2 Implant Holders
* 2 Trial Holders
* Distractor
Back Table Misc

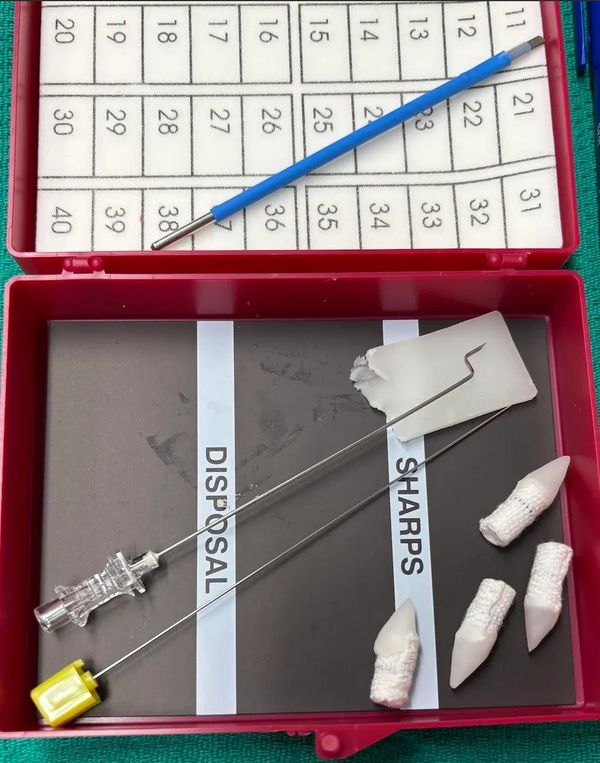

Prepare:
- Peanut-Bone wax Spears
- Bent Spinal Needle, as shown
Positioning with Traction, using Chin Strap
Horseshoe Setup with Chin Strap
Horseshoe Setup with Chin Strap
Horseshoe Setup with Chin Strap
It is important to place the chin strap before the patient positions its head on the horseshoe. The circulator is advised to position the patient on the horseshoe, with its pillow before induction.
Ensure that the mayfield bed attachments are securely locked.
Traction Setup
Horseshoe Setup with Chin Strap
Horseshoe Setup with Chin Strap
Traction always starts with 5 lbs sandbag. Prepare 10 lbs sandbag as the surgeon may increase traction weight.
Instrumentation Mayo Stand Layout (ACDF) JF
Loaner Mayo
- Lip Stick
- Shadowline Posts x2
- Shadowline Retractor
- Caspar Pin Posts x2
- Caspar Pin Retractors (LEFT)
- 5mm & 6mm Trials (Fat is old, Skinny is new) He calls the smooth 'trial' and the raspy 'broach'
- Tamp
- Implant Insertor
- Green Final Locker
- Awl (fat blue) & with a shaft to spin it with
- Skinny Blue Screwdriver x2
- Rongeur
Shared by Monika
First Mayo
- Gerald's with Teeth
- Metzembaum
- Adson Brown
- Bayonet
- Nerve Hook
- Penfield 2
- Penfieldd 4 (Bone Wax Christmas Tree)
- Freer with Bone Wax
- Leksell Rongeur
- Mayo Clamp with Peanuts x2
- Small Mallet
- Kerrison 1, 2, 3
- Pituitary and Decker
- Karlin Curettes 2-0 & 3-0 FA/FS
- Baby Weitlaner
- Cloward, with Lip
- Senn Retractor x2
- Cottonoid; .5 x 1 & 1x1
ACDF
